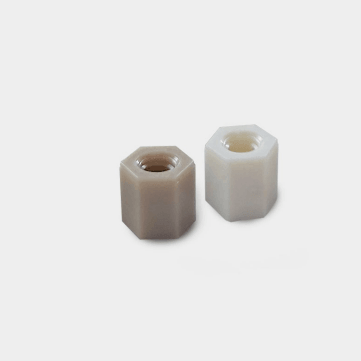

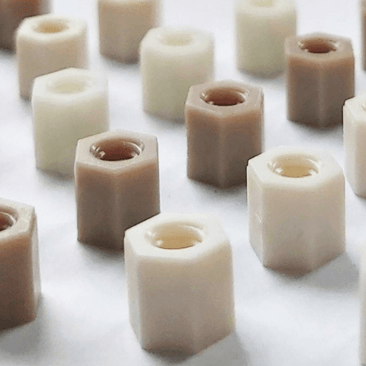

RENY Spacer Nuts

Manufactured to order.
SKU: RNYSN304
Regular price €3,17 - €4,87 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €4,87
500 pcs €4,63
1000 pcs €4,38
2500 pcs €3,90
5000 pcs €3,65
10000 pcs €3,41
20000 pcs €3,17
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: RENY

Measurement System: Metric

Drive Type: Hexagon (External)

Natural/White

Continuous use temperature: 105°C/221°F

Flammability: UL94 HB

RENY Spacer Nuts conform to the following Standards/Norms:

Reny Spacer Nuts, available in sizes ranging from M3 to M8 and lengths from 4mm to 50mm, are crafted from Reny, a high-performance polyamide-based engineering plastic. Reny is renowned for its exceptional mechanical strength, rigidity, and excellent dimensional stability, even in harsh environments. These spacer nuts are designed to provide precise spacing in assemblies, offering superior wear resistance and low friction properties. Reny material also boasts excellent chemical resistance, making these spacer nuts ideal for applications in automotive, electronics, and machinery industries where reliability and durability are paramount. Their lightweight nature further enhances their suitability for high-performance and weight-sensitive applications.

Metric Size (M) – M3, M4, M5, M6, M8

Length (mm) – 4, 5, 6, 8, 10, 12, 15, 18, 20, 25, 30, 35, 40, 50

Advantages:

High-Temperature Resistance: RENY Spacer Nuts excel in extreme heat conditions, maintaining structural integrity where conventional materials falter.

Superior Strength: Reinforced with glass fibre, RENY Spacer Nuts boast exceptional strength, ensuring robust performance in demanding applications.

Excellent Oil Resistance: RENY's innate resistance to oil and lubricants makes it ideal for use in automotive and machinery applications where exposure to oils is common.

Chemical Resistance: RENY Spacer Nuts withstand corrosive substances, ensuring long-term durability in harsh environments.

Lightweight Design: Despite their impressive strength and durability, RENY Spacer Nuts remain lightweight, contributing to overall assembly efficiency and reducing weight-related concerns.

Applications:

Automotive Industry: RENY Spacer Nuts find extensive use in automotive assemblies, including engine components, chassis systems, and electrical systems, where high-temperature resistance and strength are paramount.

Machinery: From heavy-duty industrial machinery to precision equipment, RENY Spacer Nuts contribute to operational efficiency and reliability in critical mechanical assemblies.

Precision Mechanical Parts: RENY's exceptional strength and dimensional stability make it a preferred choice for precision mechanical components, ensuring precise tolerances and consistent performance.

Electrical and Electronic Equipment: RENY Spacer Nuts provide reliable support and insulation in electronic assemblies, safeguarding sensitive components and ensuring uninterrupted functionality.

Civil Engineering and Construction: In construction applications, RENY Spacer Nuts offer durable support and fastening solutions, enduring environmental challenges with resilience.

In summary, RENY Spacer Nuts offer a winning combination of strength, temperature resistance, and chemical resilience, making them indispensable components across a wide spectrum of industries, from automotive to construction and beyond.

The RENY data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Spacer Nut Dimension Table
M Size Pitch (mm) Width - Flat To Flat (mm)
M3 0.5 6.0
M4 0.7 7.0
M5 0.8 8.0
M6 1.0 10.0
M8 1.25 13.0

Dimension Table

Dimensions for RENY Spacer Nuts in all available sizes are shown according to the product drawing above.

Key RENY MXD6 - 50% Glass Fibre Reinforced Nylon Properties

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datasheet

Follow the link below to view our RENY data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

RENY Key Properties

  • High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

    Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

    Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

    Excellent weight to strength ratio - Specific gravity (1.65).

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High heat operation (105°C)

    - Ultra low weight

  • - Flame resistance (UL94 HB)

    - Hydrolysis resistance
