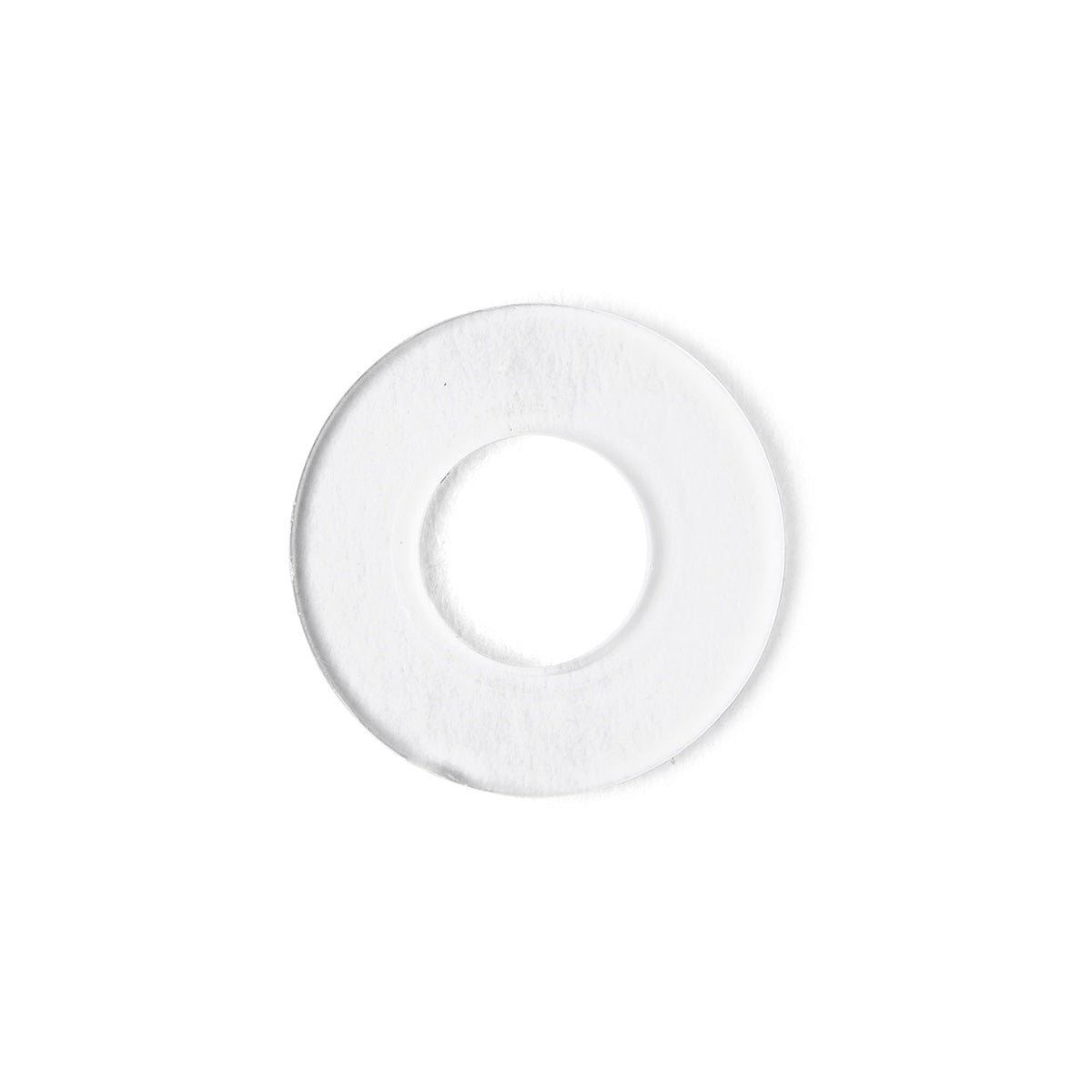

Polycarbonate Flat Washers - DIN 125 A

2750 In Stock
SKU: PCFWAM2
Regular price €0,03 - €0,05 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,05
500 pcs €0,05
1000 pcs €0,05
2500 pcs €0,04
5000 pcs €0,04
10000 pcs €0,04
20000 pcs €0,03
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Colour: Transparent/Natural

Continuous use temperature: 115°C/239°F

Flammability: UL94 V-2

Polycarbonate Flat Washers - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

Polycarbonate (PC) flat washers are perfect for general use, they are transparent in colour, which makes them great for applications that require the washer to be aesthetically pleasing.

Our PC flat washers are compliant with DIN 125 specification and can be used in combination with an array of different material fasteners depending on application.

PC flat washers are available in standard metric sizes (M2- M12).

PC fasteners are commonly used in general applications due to low unit costs, high impact strength and non-corrosive properties.

Certificate of conformity available on request.

Please find a link to our data sheet below.

What are Polycarbonate Flat Washers?

Polycarbonate flat washers are washers made of polycarbonate, a type of plastic that is known for its high strength and durability. Polycarbonate is a popular material for washers and other components because it is resistant to impact, wear, and other forms of damage.

Flat washers are used to distribute the load of a fastener, such as a bolt or screw, over a larger area. They can also be used to provide a smooth surface for the fastener to bear against, or to prevent damage to the material being fastened. Flat washers are usually placed between the fastener head and the material being fastened, and are often used in conjunction with nuts or other types of fasteners.

Polycarbonate flat washers are a good choice for applications where strength and durability are important factors. They are also resistant to corrosion, which makes them well-suited for use in outdoor or high-moisture environments. Like other types of washers, they are available in a range of sizes to suit different needs.

Polycarbonate flat washers are commonly used in a variety of industries, including construction, manufacturing, and automotive. They are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Polycarbonate Flat Washers - DIN 125 A

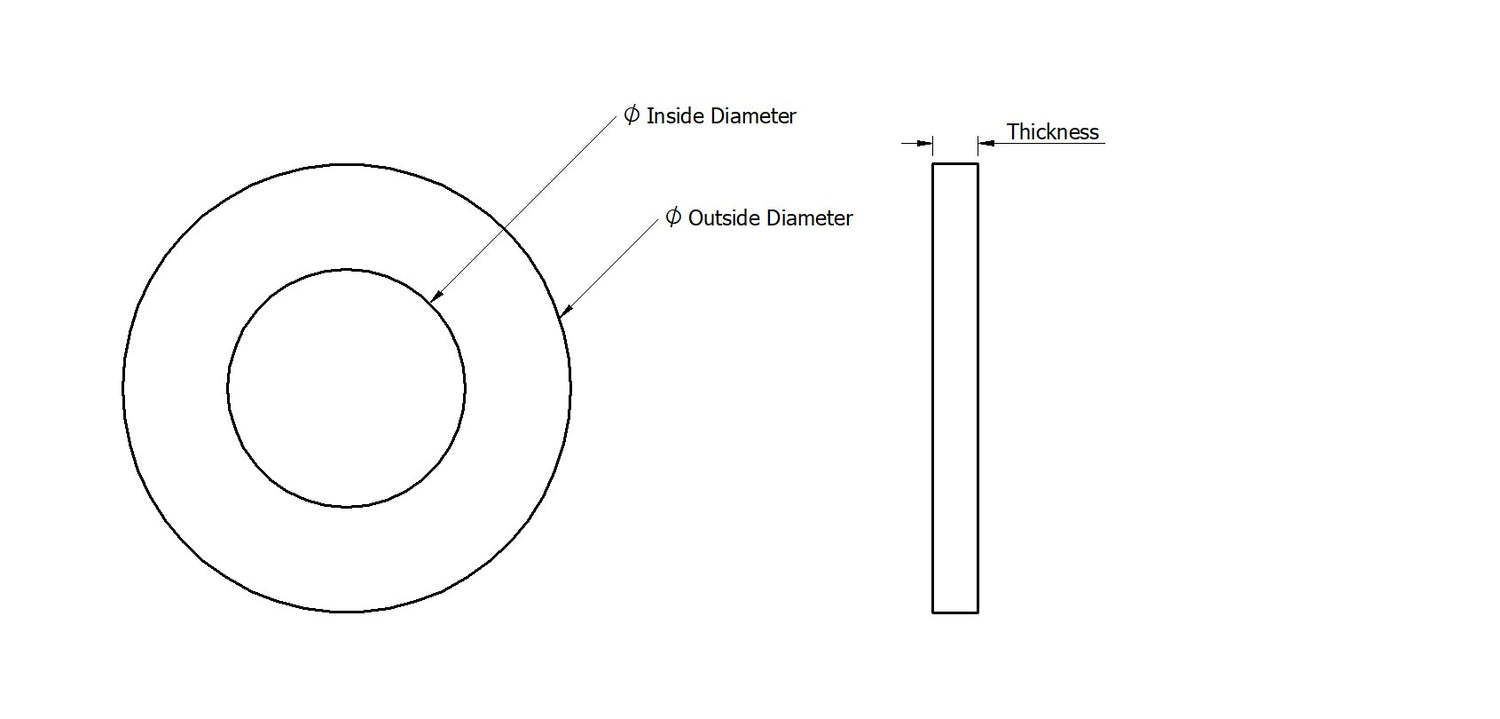

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for Polycarbonate Flat Washers - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polycarbonate (PC) Properties

Polycarbonate (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
