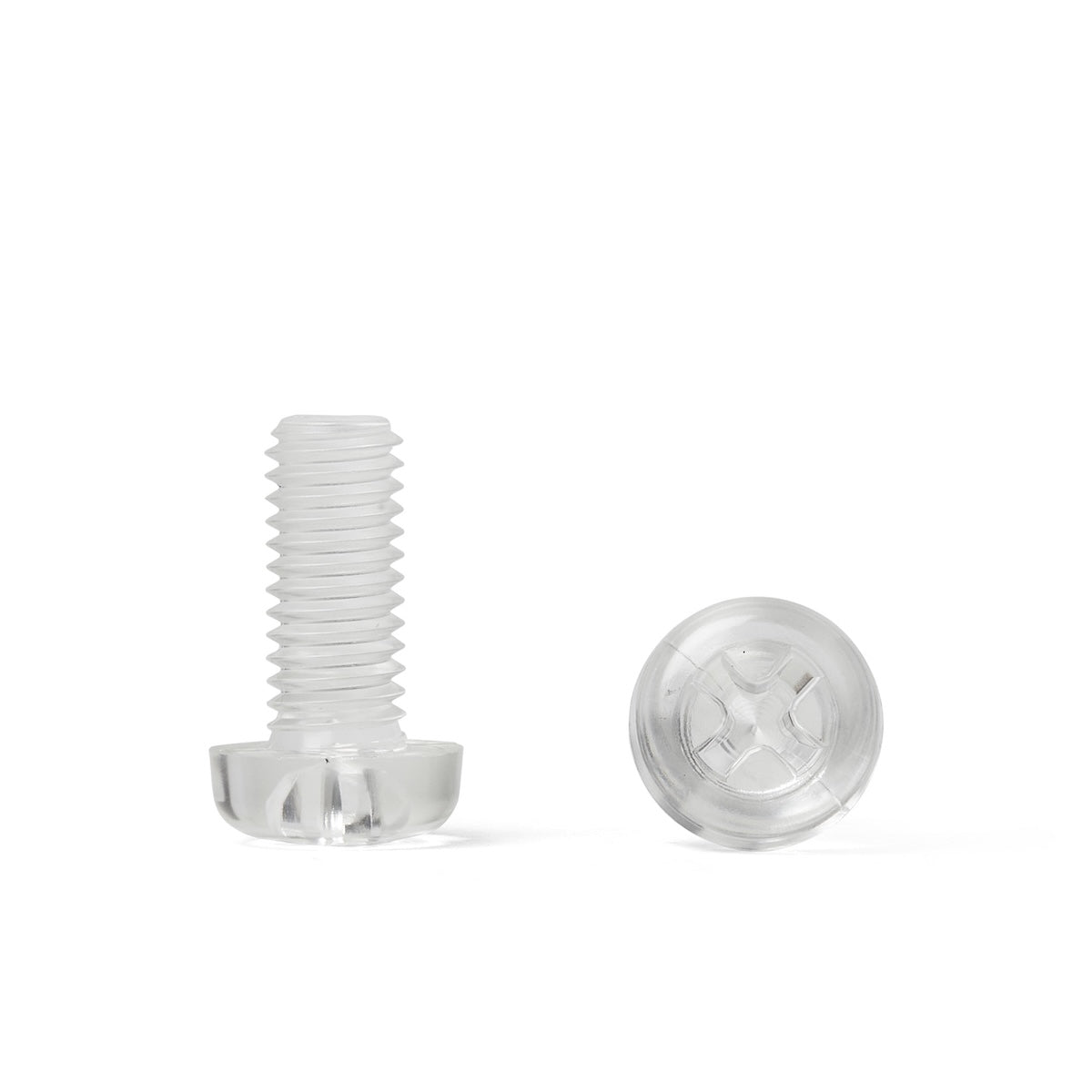

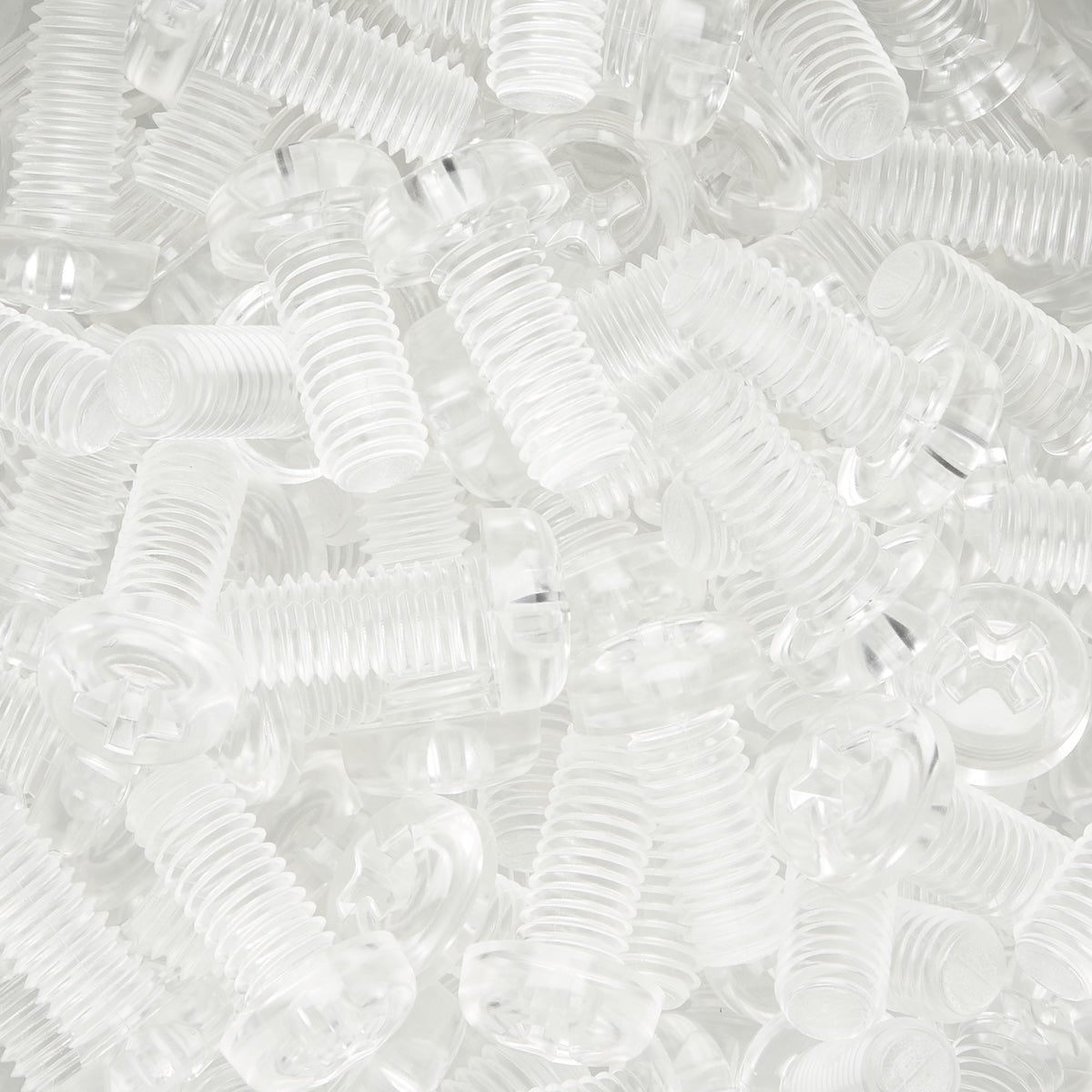

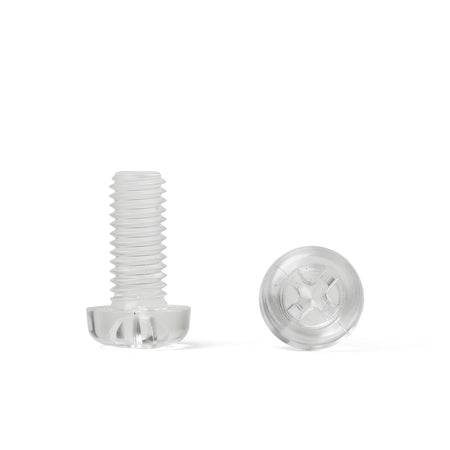

Polycarbonate Pan Head Screws - Cross Recessed Phillips - DIN 7985

Manufactured to order.
SKU: PCPN173
Regular price €0,08 - €0,12 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,12
500 pcs €0,11
1000 pcs €0,11
2500 pcs €0,10
5000 pcs €0,09
10000 pcs €0,08
20000 pcs €0,08
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Black/Transparent/Natural

Continuous use temperature: 115°C/239°F

Flammability: UL94 V-2

Polycarbonate Pan Head Screws - Cross Recessed Phillips - DIN 7985 conform to the following Standards/Norms:

ISO 7045

DIN 7985

CSN 021147

PN 82202

UNI 7687

Polycarbonate (PC) Pan Head screws are a great all round fastener for when general applications are required.

Our PC screws are transparent, which makes them perfect for use in applications that require the screw to be aesthetically appealing.

HPP’s Pan Head screws are manufactured using injection moulding techniques. The moulds have been developed over time to ensure quality within the threads and to minimise the gate residue (>5%) that occurs from the manufacturing process.

Our PC screws are commonly used in general applications due to low unit costs, high impact strength and non-corrosive properties.

Certificate of conformity available on request.

A link to our data sheet is below.

What are Polycarbonate Pan Head Screws?

Polycarbonate pan head screws are screws with a round, flat head and a cylindrical shank. They are made of polycarbonate, a type of plastic that is known for its high strength and durability. Polycarbonate is a popular material for fasteners and other components because it is resistant to impact, wear, and other forms of damage.

Pan head screws are used to fasten two or more parts together and are tightened using a screwdriver or drill. They are commonly used in a variety of applications, including construction, manufacturing, and automotive.

Polycarbonate pan head screws are a good choice for applications where strength and durability are important factors. They are also resistant to corrosion, which makes them well-suited for use in outdoor or high-moisture environments. Like other types of screws, they are available in a range of sizes and thread types to suit different needs.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Polycarbonate Pan Head Screws - Cross Recessed Phillips - DIN 7985

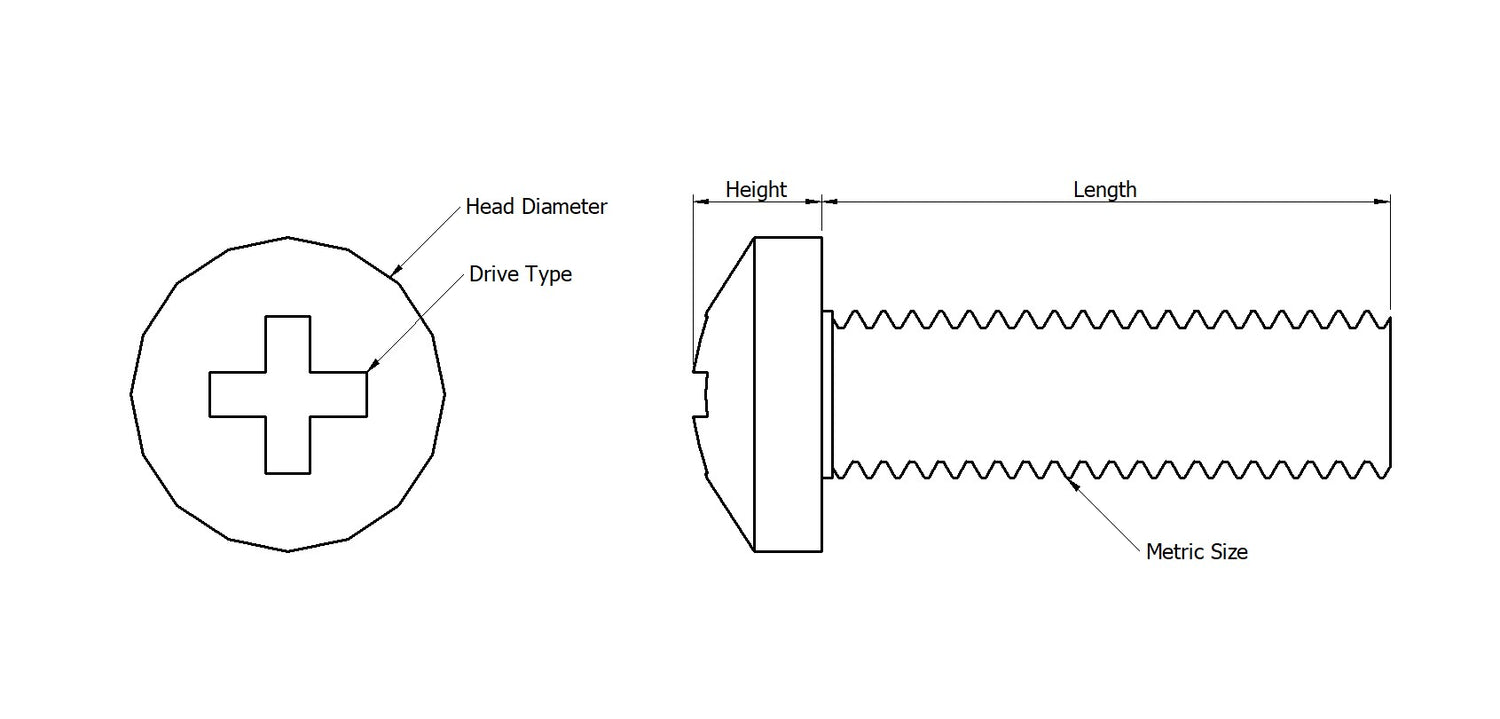

Product Drawing

Pan Head Screw Dimension Table (ISO7045/DIN7985)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm)
M1.7 0.35 2.5 0.5
M2 0.4 3.5 1.3
M2.5 0.45 4.5 1.7
M2.6 0.45 4.5 1.7
M3 0.5 5.5 2.0
M4 0.7 7.0 2.6
M5 0.8 9.0 3.3
M6 1.0 10.0 3.9
M8 1.25 14.0 5.2

Dimension Table

Dimensions for Polycarbonate Pan Head Screws - Cross Recessed Phillips - DIN 7985 in all available sizes are shown according to the product drawing above.

Key Polycarbonate (PC) Properties

Polycarbonate (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.
