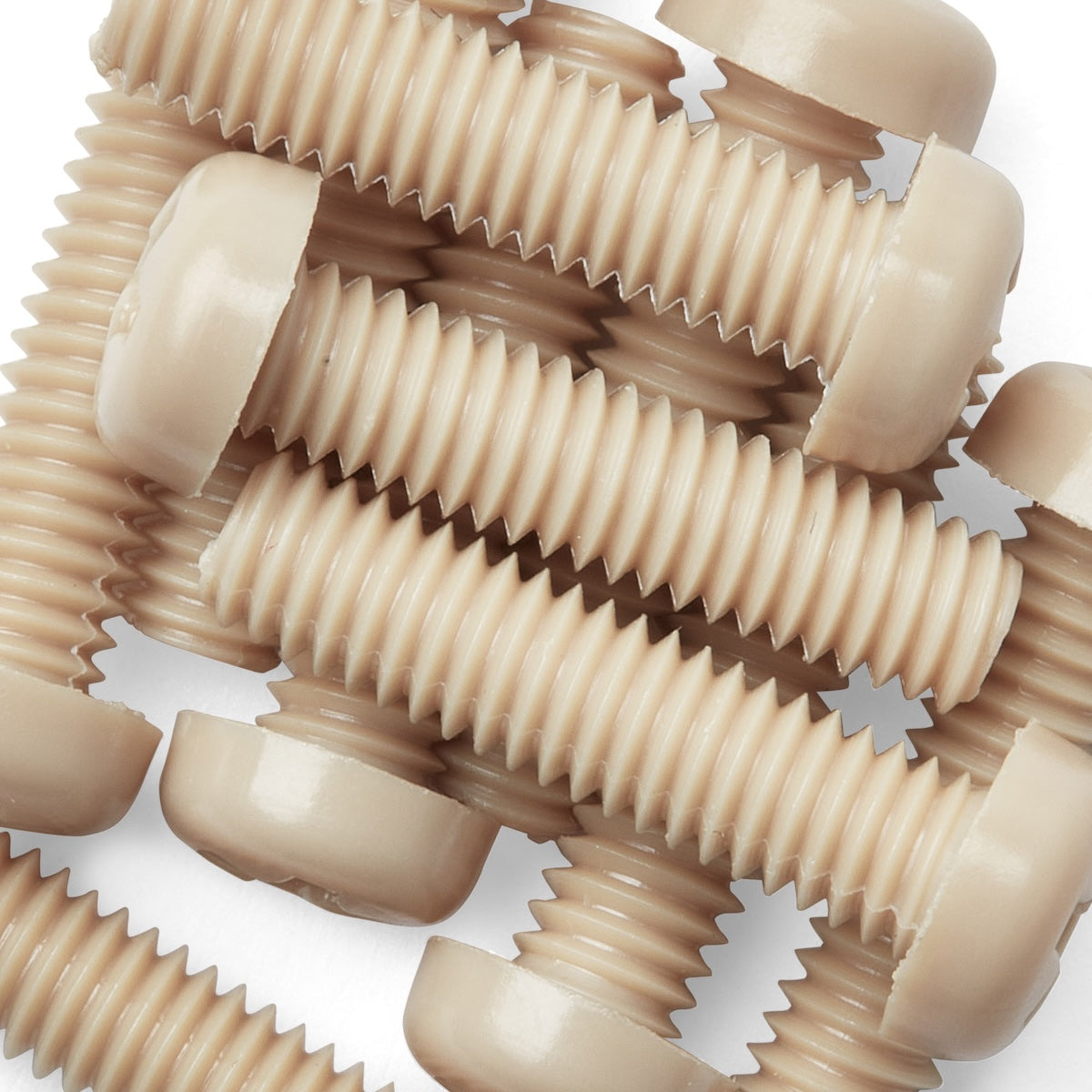

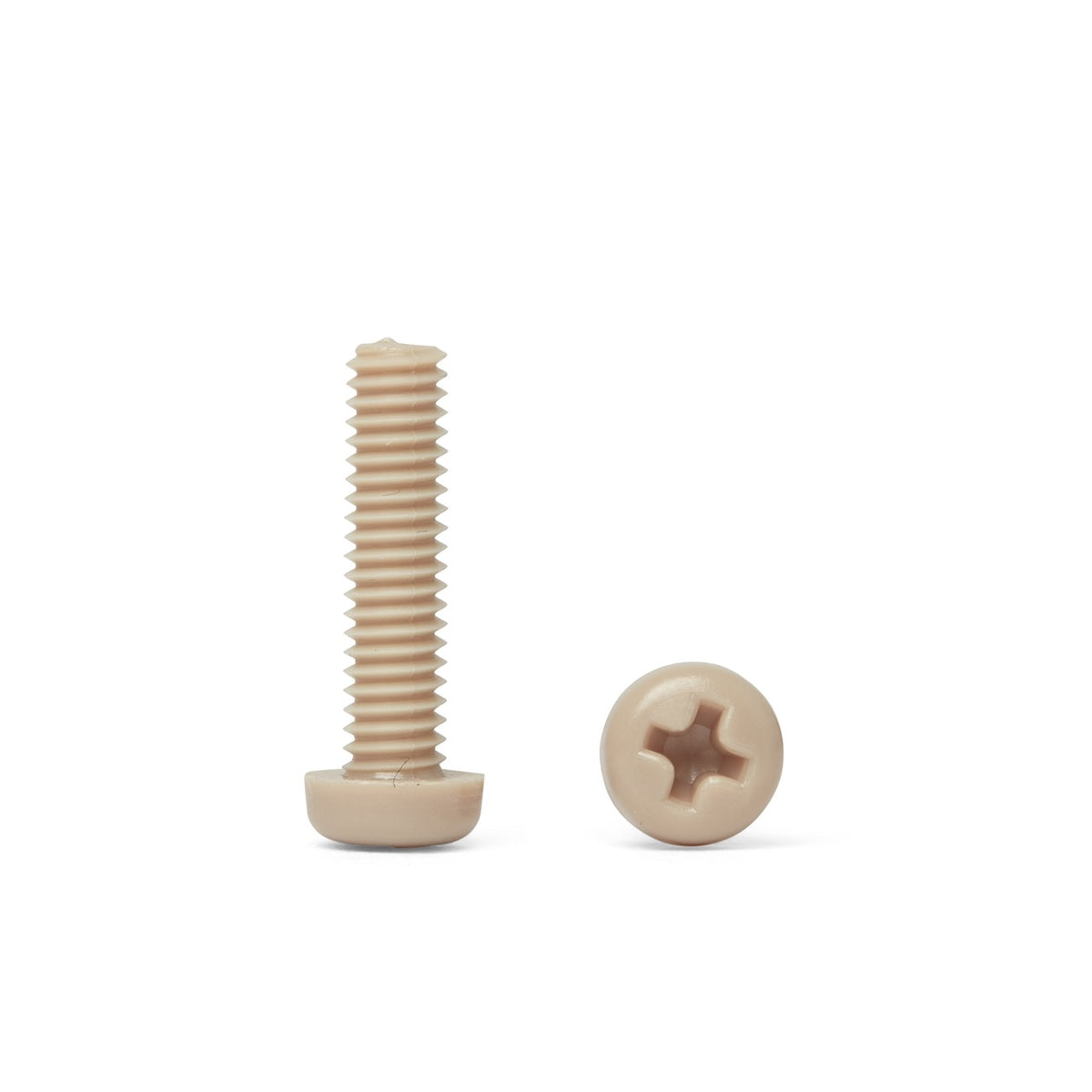

PPS Pan Head Screws - Cross Recessed Phillips - DIN 7985

1959 In Stock
SKU: PPSPN204
Regular price €0,39 - €0,60 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,60
20 pcs €0,57
50 pcs €0,54
100 pcs €0,48
250 pcs €0,45
500 pcs €0,42
1000 pcs €0,39
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PPS

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Natural/Beige

Continuous use temperature: 200°C/392°F

Flammability: UL94 V-0

PPS Pan Head Screws - Cross Recessed Phillips - DIN 7985 conform to the following Standards/Norms:

ISO 7045

DIN 7985

CSN 021147

PN 82202

UNI 7687



PPS Pan Head screws are an ideal all round fastener for general applications requiring a high tensile strength.

Exceptional tensile strength and low rates of water absorption allow PPS screws to be applied to a wide range of applications.

HPP’s Pan Head screws are manufactured using injection moulding techniques. The moulds have been developed over decades to ensure quality threads and to minimise the gate residue (<5%) that occurs from plastic manufacturing processes.

Why use PPS?

PPS screws are reinforced with 40% glass fibre, this enables tensile strengths that are similar to our PEEK GF30 (30% glass-fibre reinforced) range, however with a much larger range of sizes and with reduced cost.

PPS has characteristics that are positioned perfectly between our RENY and PEEK range.

What are PPS Pan Head Screws?

PPS (polyphenylene oxide) is a type of high performance polymer that is known for its excellent chemical resistance, temperature resistance, and dimensional stability. A pan head screw is a type of fastener with a rounded head and a flat top, similar in shape to a cooking pan.

PPS pan head screws are therefore fasteners made of a PPS polymer, with a rounded head and a flat top. These screws may be used in applications where chemical resistance, temperature resistance, and dimensional stability are important, such as in the chemical processing and oil and gas industries. They may also be used in medical and surgical devices, as well as in consumer electronics and other high-tech applications. PPS pan head screws may be used to fasten parts together, such as in the assembly of machinery or equipment, or to secure parts in place, such as bearings and gears. They may be used in applications where a flush finish is desired, such as in the construction of aircraft or other high-tech products.

The PPS data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PPS Pan Head Screws - Cross Recessed Phillips - DIN 7985

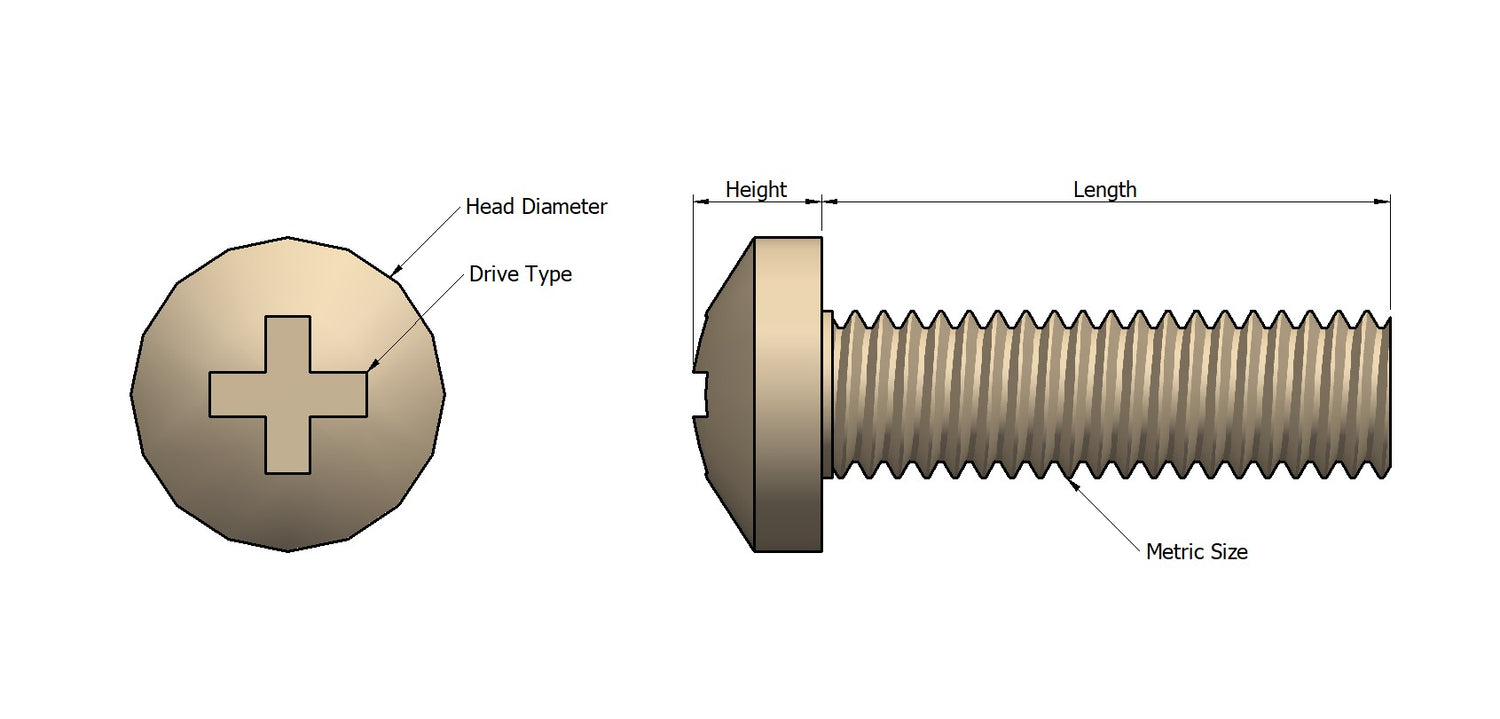

Product Drawing

Pan Head Screw Dimension Table (ISO7045/DIN7985)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm)
M1.7 0.35 2.5 0.5
M2 0.4 3.5 1.3
M2.5 0.45 4.5 1.7
M2.6 0.45 4.5 1.7
M3 0.5 5.5 2.0
M4 0.7 7.0 2.6
M5 0.8 9.0 3.3
M6 1.0 10.0 3.9
M8 1.25 14.0 5.2

Dimension Table

Dimensions for PPS Pan Head Screws - Cross Recessed Phillips - DIN 7985 in all available sizes are shown according to the product drawing above.

Key Polyphenylene Sulphide (PPS) Properties

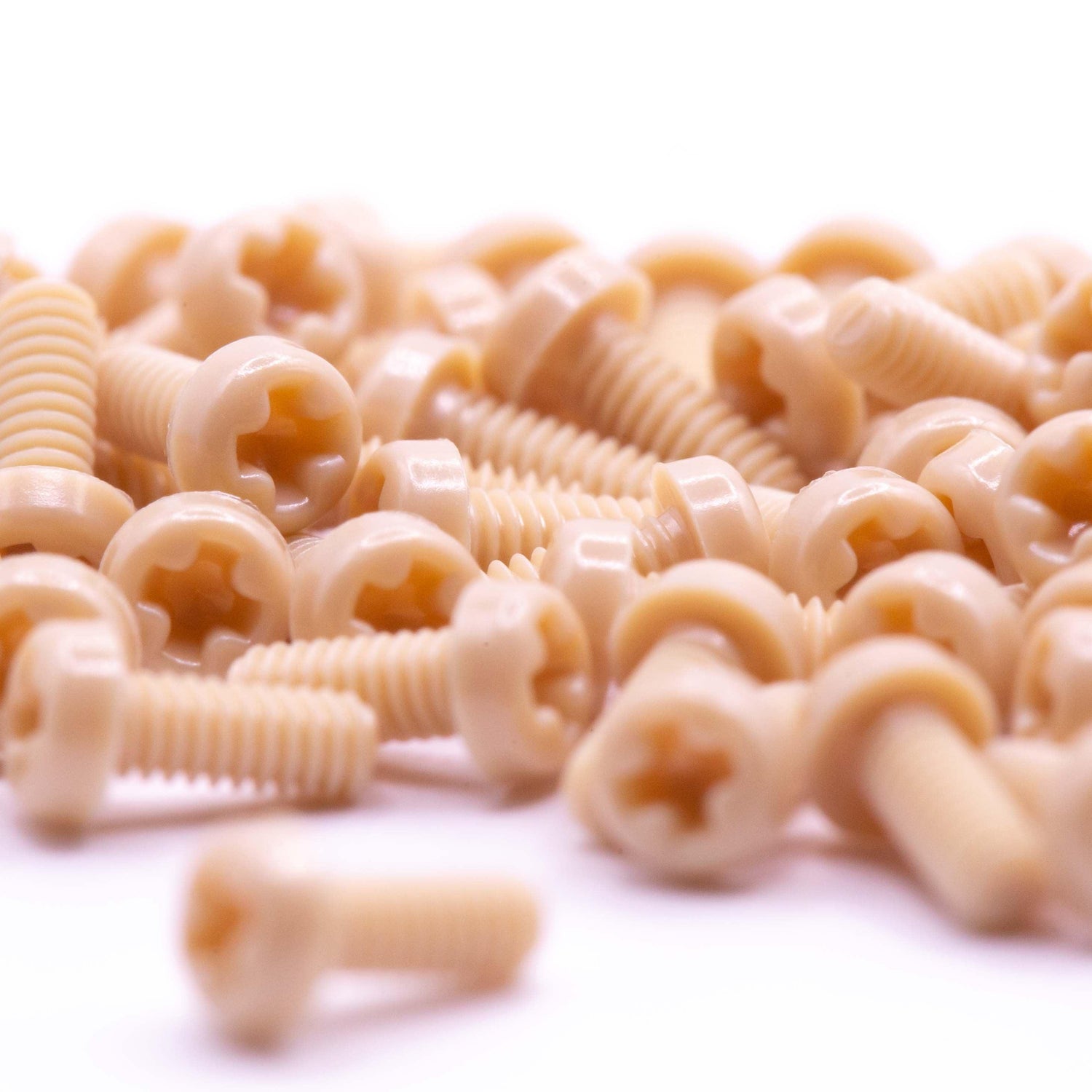

PPS Pan Head Screws - Cross Recessed Phillips - High Performance Polymer-Plastic Fastener Components

Polyphenylene Sulphide (PPS) Datasheet

Follow the link below to view our PPS data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PPS Key Properties

  • Exceptional tensile strength - 185 MPa Standard.

    Exceptional dimensional stability - Even at high temperatures (200°).

    Ideal alternative to PEEK - Encompasses characteristics similar to RENY and PEEK.

    Excellent weight to strength ratio - Specific gravity (1.66).

  • - High operation temperature up to 200°C

    - Ultra low weight

    - Flame resistance (V-0)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive
