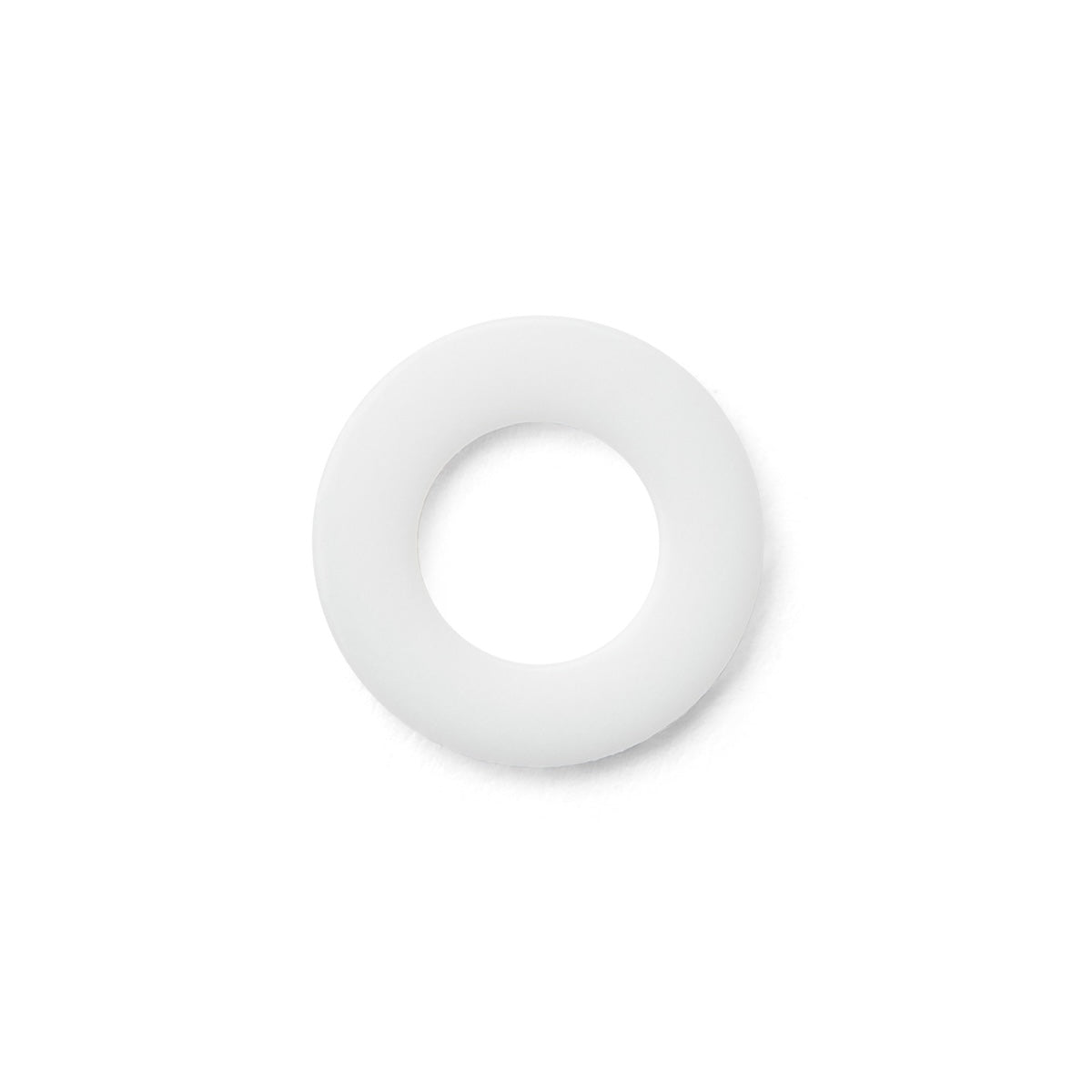

PTFE Teflon Flat Washers - DIN 125 A

1990 In Stock
SKU: PFEWAM3
Regular price €0,13 - €0,20 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,20
20 pcs €0,19
50 pcs €0,18
100 pcs €0,16
250 pcs €0,15
500 pcs €0,14
1000 pcs €0,13
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PTFE

Measurement System: Metric

Colour: White

Continuous use temperature: 260°C

Flammability: UL94 V-0

PTFE Teflon Flat Washers - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

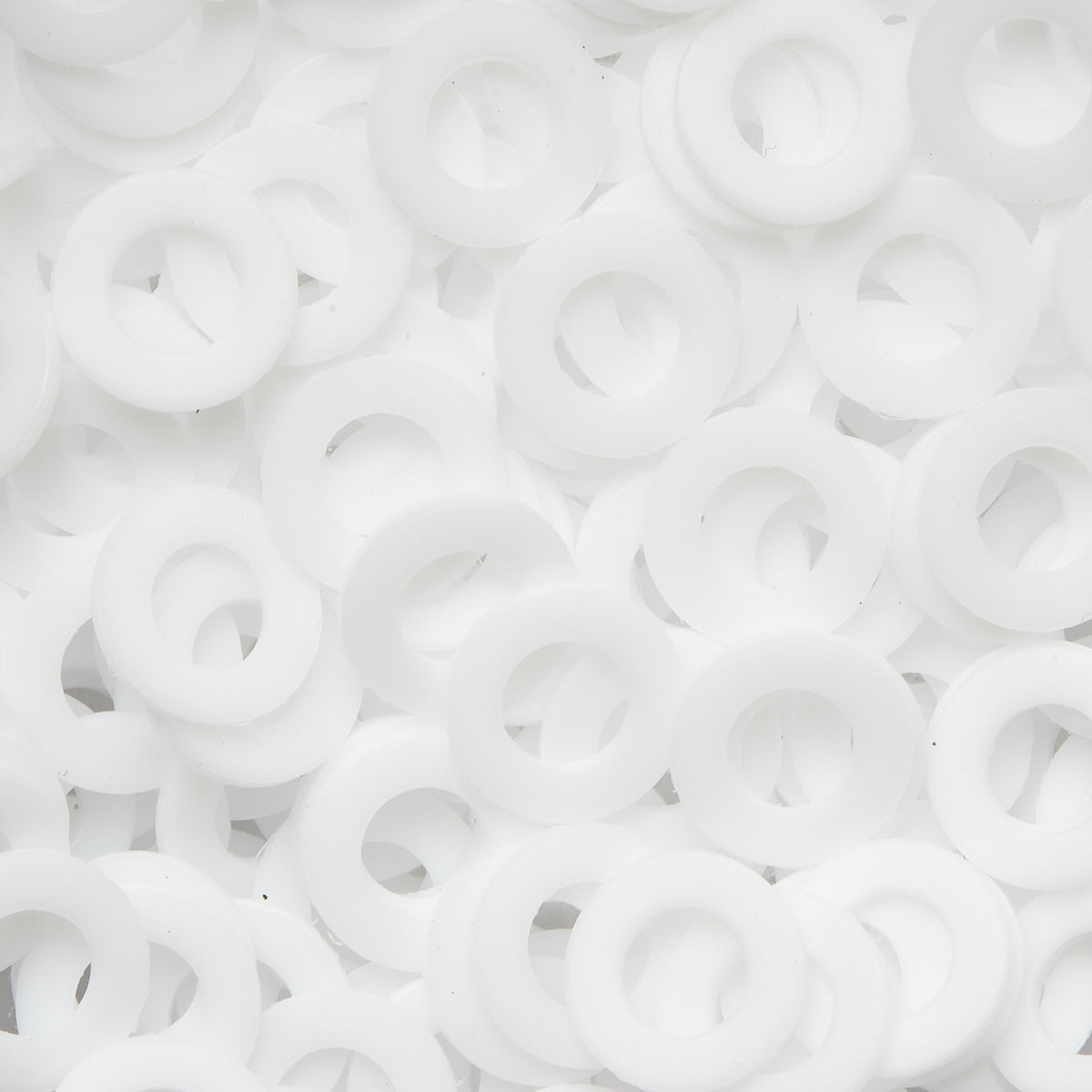

Our PTFE or ‘Teflon’ Flat washers are manufactured from pure PTFE.

PTFE washers are naturally highly chemical resistant and self-lubricating, which allows for accurate torquing and smoother operation.

Our flat washers are manufactured to exceptionally high standards and compliant with DIN 125 specification. These can also be used in combination with an array of different material fasteners depending on your application.  Available in sizes M3- M12.

PTFE Datasheet available below.

If further information is required, please contact us.

What are PTFE Flat Washers?

PTFE (polytetrafluoroethylene) flat washers are washers with a flat, circular shape and a hole in the center. They are made of PTFE, a type of plastic that is known for its high strength and durability, as well as its low friction and non-stick properties.

Flat washers are used to distribute the load of a fastener, such as a bolt or screw, over a larger area. They can also be used to provide a smooth surface for the fastener to bear against, or to prevent damage to the material being fastened. Flat washers are usually placed between the fastener head and the material being fastened, and are often used in conjunction with nuts or other types of fasteners.

PTFE flat washers are a good choice for applications where low friction and non-stick properties are important factors. They are also resistant to chemical attack and are resistant to wear and damage from mechanical stress. Like other types of washers, they are available in a range of sizes to suit different needs.

PTFE flat washers are commonly used in a variety of industries, including aerospace, automotive, and chemical processing. They are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.

The PTFE data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PTFE Teflon Flat Washers - DIN 125 A

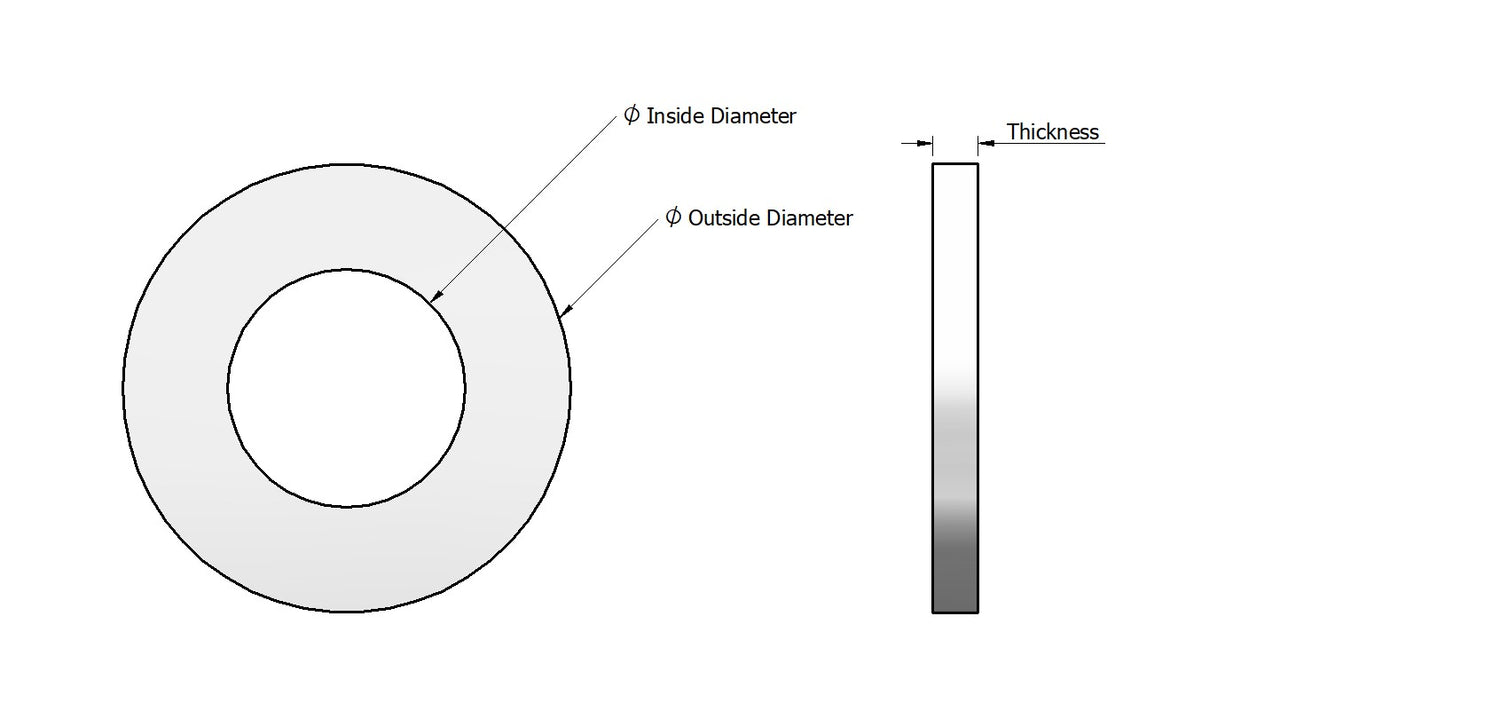

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for PTFE Teflon Flat Washers - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polytetrafluoroethylene (PTFE/Teflon) Properties

Polytetrafluoroethylene (PTFE/Teflon) Datasheet

Follow the link below to view our PTFE data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PTFE Key Properties

  • Exceptional Chemical Resistance - Perfect for applications in the pharma sector.

    Low Adhesive Properties - Ideal for application that require self lubrication.

    High UV Resistance - Low rates of deterioration in external applications.

    Low Water Absorption Rates - A great alternative to nylon.

  • - Max operation temperature 260°C

    - Ultra low weight

    - Flame resistance (V-0)

    - Abrasion resistance

    - Hydrolysis resistance

    - Great electrical insulating properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Material flexibility

    - Low coefficent of friction

    - High thermal stability
